Flammability Tester for Rubber and Plastics

Flammability Tester for Rubber and Plastics Feature:

Key Features:

Standout Features of the Flammability Tester for Rubber and Plastics for Flame Resistance Testing, as per UL 94 Standard:

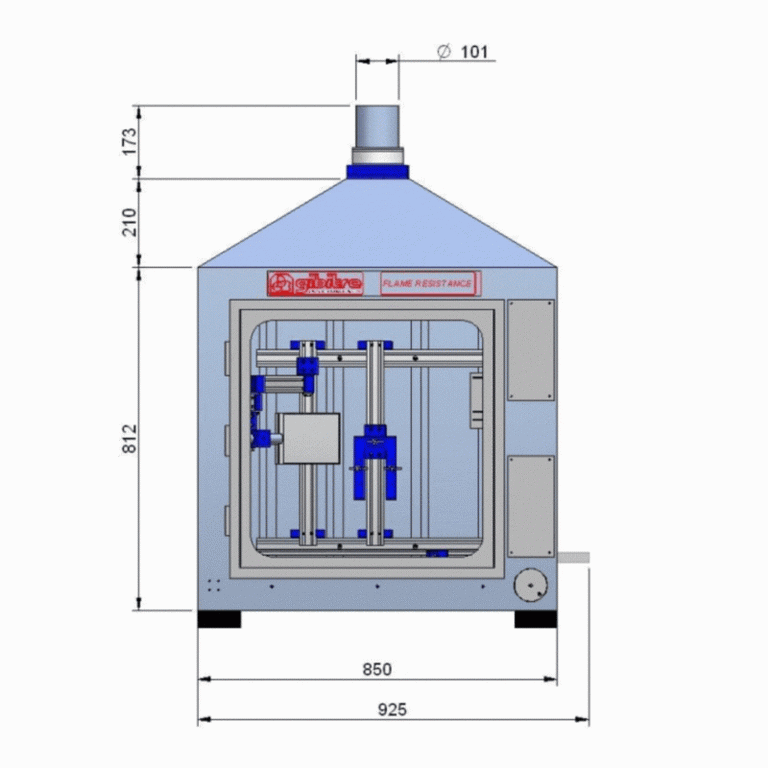

Enhanced Design:

• Crafted with a stainless steel cabinet, featuring a tempered glass viewing window and an interior light.
• Equipped with a Bunsen burner in alignment with ASTM D5025 standard.
• Incorporates a flow meter for precise gas flow control.

Versatile Flame Management:

• Facilitates flame angle customization with support for flame angle set at 0°, 20°, and 45°.
• A slide mechanism allows for easy flame position adjustment.

Accurate Sample Handling:

• Fitted with a sample holder designed to meet standards, complete with adjustable sample positioning.

Integrated Measurement Capabilities:

• Houses a digital thermometer to accurately gauge flame temperature, seamlessly integrated into the instrument.
• A digital timer, boasting a resolution of 0.1 seconds, precisely measures test durations.

Exhaustive Safety:

• Features an exhaust fan strategically incorporated to efficiently dispel combustion fumes, ensuring safety and comfort during testing processes.

Selecting Flammability Check equips you with a cutting-edge instrument boasting advanced features for comprehensive flame resistance testing, aligned with UL 94 standards.

Technical Features

Bunsen Burner:

The Bunsen burner adheres to ASTM D5025 and CEI IEC 60695-11-4 standards, featuring the following components:

• Incorporated safety sensor, designed to halt gas flow when the flame is not present.
• Adjustable air-to-gas mix control facilitated by a dedicated ring.
• The support structure can be tilted, catering to testing scenarios with angled flames (0°, 20°, 45°).

Temperature Calibration:

The Flammability Tester for Rubber and Plastics comes equipped with the following components for temperature calibration:

• An internal thermometer integrated with a thermocouple, tailored for a 20 mm Test Flame in line with the ASTM D 5207 standard.
• A ruler enables verification of the flame height.

Both the thermocouple and ruler are positioned within the chamber of the instrument. To assess the flame's temperature, simply adjust the burner's position beneath the thermocouple using the movement knob. This streamlined process ensures accurate and hassle-free temperature measurement.

Burner Positioning Mechanism:

The Flammability Tester for Rubber and Plastics incorporates a user-friendly mechanism for relocating the burner within the chamber. A conveniently located knob outside the cabin enables the manipulation of the slide, facilitating the horizontal movement of the burner.

This device empowers the operator to meticulously manage the flame's precise placement beneath the specimen. This control is achieved effortlessly through the inspection window, ensuring optimal testing conditions and accurate positioning.
