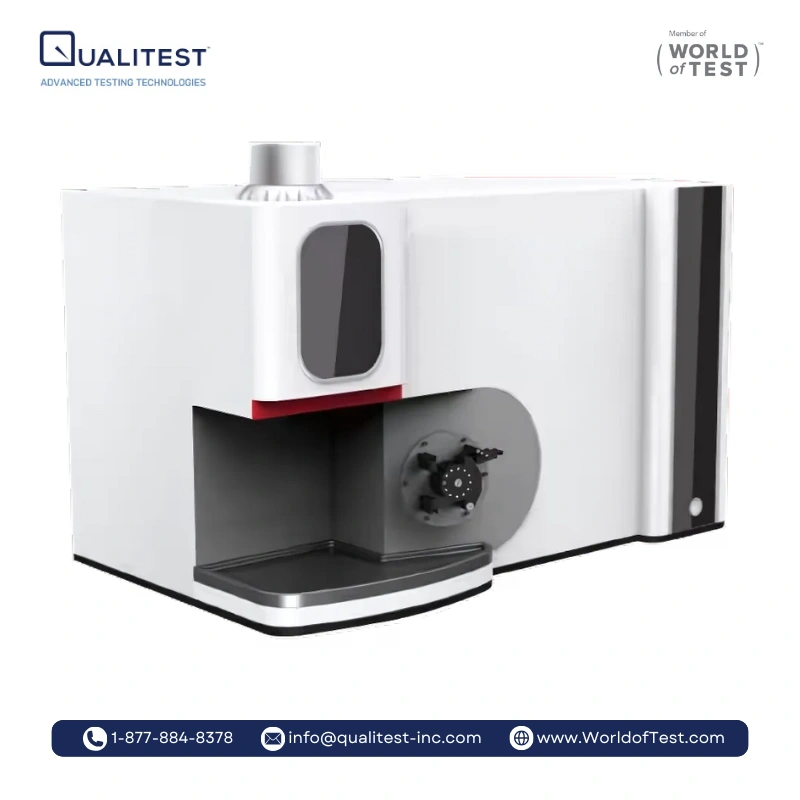

ICP-OES Spectrometer - PLASMA 2000

The echelle grating and crossed prism dispersion structure in combination with large-area CCDs for simultaneous display of all spectral lines of single exposure and “full-spectrum transient direct reading”.

The programmable output power program has an automatic real-time tuning function for continuous 1W adjustment within 800-1600W, with a stability of above 0.1%.

Application engineers jointed in the software design team to provide tailored operational software for users.

The Principle of Instrument

Operating Principle

The test sample is first changed into aerosol in a nebulizer and then enters the central plasma passage of the quartz torch, etc. The light excited by heating from the light source is split by a prism and echelle grating to form characteristic spectral lines of elements on the CCD detector. A spectrogram is generated after processed in the circuit. The element concentrations are determined by means of computer data processing.

Light source

The efficient solid-state RF generator is compact in size and has high efficiency.

Oscillation frequency: 27.12MHz;Output power: 800-1600W (with real-time tuning capable of continuous adjustment by 1W,

with stability better than 0.1%).

The torch position can be adjusted electrically, and the software has the automatic torch position optimization function.

The electrical control system is modularized and can provide high-performance CAN industrial field interfaces to ensure efficient and reliable communication.

The system operating parameters are monitored in real time; and the system is provided with built-in protection logic for interlocking protection of gas, water, temperature, and door switch, etc.

Beam splitting system

The echelle grating and cross prism dispersion structure in combination with large-area CCDs for simultaneous display of all spectral lines of single exposure and “full-spectrum transient direct reading”.

The optimized optical design and aspherical optical elements prevents astigmation, guarantees the best image quality, and increases luminous flux and spectrum acquisition efficiency.

The intelligent multi-point charge system improves the ultraviolet sensitivity; the independent gas circuit in the light chamber can be filled with argon or nitrogen, and the dehydration device is arranged in the gas circuit.

The three-dimensional temperature control system has a control precision of 0.1 °C

Detector

• Large-area backside CCD chip, high ultraviolet spectrum and quantum efficiency, and wide dynamic range
• The largest chart among similar products, with millions of pixels, single pixel area of 24umx24um, low noise and excellent stability
• the high-speed acquisition system provides for simultaneous full-spectrum reading and real-time single pixel, subarray monitoring and quick analysis.

Sampling system

• Multichannel 12-roller peristaltic pump, with less data fluctuation caused by different physical properties of samples;
• Optional Meinhard quartz nebulizer, hydrofluoric acid resistant nebulizer with double platinum meshes and V-groove nebulizer for analysis of high salt content samples;
• Quartz torch, and optional quartz torch with ceramic central tube for analysis of samples containing hydrofluoric acid
• Double-cylinder fog chamber, vortex fog chamber or hydrofluoric acid resistant fog chamber;
• Abundant system accessories not only guarantees stable and quick sampling, but also caters for analysis with different media and solutions of varying salinity.
• Mass flowrate controller for carrier gas flow control. It can be regulated by 0.01L continuously.
• Optional mass flowrate controller for cooling gas and auxiliary gas flow control. It can be regulated by 0.1L continuously

Safety protection system

• All-round electromagnetic shielding to reduce electromagnetic radiation;
• Interlocking door protection to prevent loss caused by misoperation;
• UV-proof observation window
