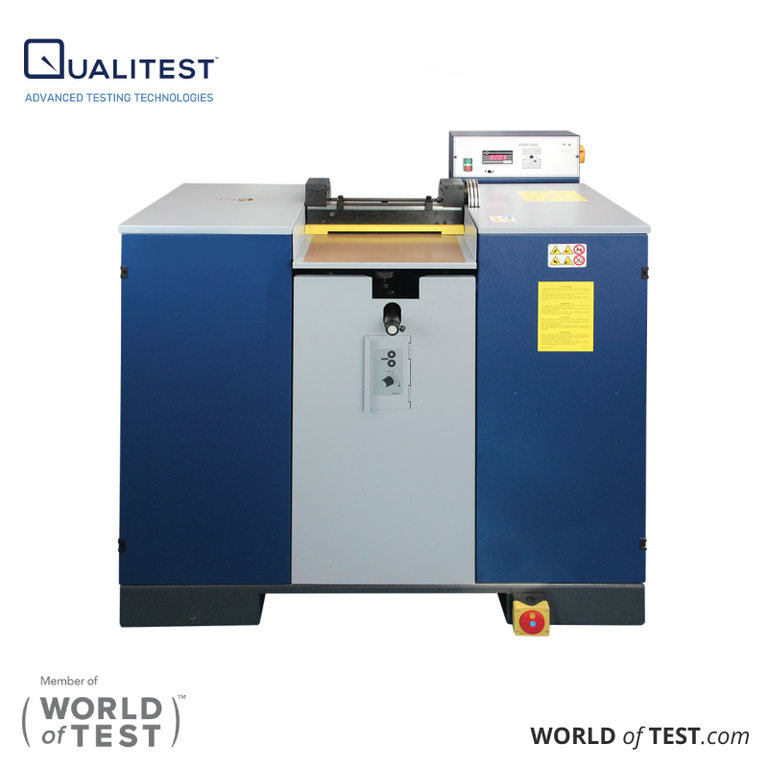

Laboratory Cutting / Splitting Machine for Finished Rubber Samples
This Laboratory Cutting / Splitting Machine for Finished Rubber Samples offers the capability to generate samples with thicknesses tailored to customer specifications, utilizing finished products as a foundation. The process involves placing the designated segment between motor-driven feed steel rollers and a blade. The blade's position can be finely tuned with an accuracy of 0.01 mm, allowing for precise horizontal splitting.
Key Factors:
- Impeccable Mechanical Construction: The machine boasts a high-quality mechanical design, ensuring robust and reliable performance.
- Precision Sharpening: The micrometric drive-based sharpening mechanism guarantees accurate and consistent blade sharpening.
- Variable Feed Speed: The feed speed is adjustable, accommodating various requirements and materials.
- Integrated Lubrication: The integrated blade lubrication system further enhances the machine's efficiency and longevity.
Outcome: The Machine excels in splitting rubber or thermoplastic products with hardness ranging from 30 to 75 Shore A, consistently delivering exceptional results.
Applications
Applications
Why Opt for the Laboratory Cutting / Splitting Machine for Finished Rubber Samples?
Overview:
This Laboratory Cutting / Splitting Machine for Finished Rubber Samples offers the capability to generate samples with thicknesses tailored to customer specifications, utilizing finished products as a foundation. The process involves placing the designated segment between motor-driven feed steel rollers and a blade. The blade's position can be finely tuned with an accuracy of 0.01 mm, allowing for precise horizontal splitting.
Key Factors:
- Impeccable Mechanical Construction: The machine boasts a high-quality mechanical design, ensuring robust and reliable performance.
- Precision Sharpening: The micrometric drive-based sharpening mechanism guarantees accurate and consistent blade sharpening.
- Variable Feed Speed: The feed speed is adjustable, accommodating various requirements and materials.
- Integrated Lubrication: The integrated blade lubrication system further enhances the machine's efficiency and longevity.
Outcome: The Machine excels in splitting rubber or thermoplastic products with hardness ranging from 30 to 75 Shore A, consistently delivering exceptional results.
Features/Advantages
Features
Laboratory Cutting / Splitting Machine for Finished Rubber Samples Features:
Instrument Features:
- Operating Width: 300 mm
- Maximum Cutting Thickness: 8 mm
- Minimum Cutting Thickness: 0.5 mm
- Manual Micrometric Knife Positioning: Allows for precise knife adjustment and compensation for knife wear.
- Micrometric Sharpening Mechanism: Ensures accurate and controlled blade sharpening.
- Variable Feed Speeds: Choose from manual speed options: 0.9 / 1.8 / 2.8 m/min
- Motor-Driven Steel Feed Rollers: Both upper and lower rollers are motor-driven for efficient operation.
- Control Panel with Digital Thickness Indicator: Boasts a 0.01 mm resolution for precise thickness measurement.
- Optical Group for Chamfer Control: Enables assessment of chamfer position and symmetry.
- Automatic Blade Lubrication Unit: Equipped with an automatic lubrication system for the splitting machine's blade.
- Self-Adjusting Knife Guide Plate: Facilitates hassle-free operations by automatically adjusting the knife guide plate.
- CE Safety Systems: Incorporates safety features compliant with CE standards.
- Easy Maintenance: Designed for straightforward maintenance procedures.
Accessories: Removable Aspiration Unit:
Enhance your setup with the convenience of a detachable aspiration unit, designed to optimize air quality and facilitate efficient removal of particulates.
Theory/Method
Theory/Method
Laboratory Cutting / Splitting Machine for Finished Rubber Samples Applications
The machine finds successful application in:
- Crafting samples from individual layers of multi-layer rubber hoses.
The machine excels in:
- Generating samples from each layer of multi-layer rubber or plastic cables.
... and much more:
- Acquiring samples from sections of large rubber components.
- Procuring samples from tires.
- ... and many additional applications.
Safety Measures:
-
Safety push-button mechanism.
- Safety switches are designed to prevent activation when protections are open.
- CE labeling to signify adherence to safety standards and regulations.
Technical Specifications
Technical Specifications
|
Reference Standards |
|
|
STANDARDS THE LABORATORY CUTTING / SPLITTING MACHINE FOR FINISHED RUBBER SAMPLES COMPLIES WITH: ASTM D3183; ASTM D1056; ISO 23529; EN 60811-1-1; IEC 60811_1_1; |
|
|
Laboratory Cutting / Splitting Machine for Finished Rubber Samples Characteristics |
|
|
WORKING WIDTH 300 mm |
MINIMUM CUTTING THICKNESS 0.5 |
|
MAXIMUM CUTTING THICKNESS 8 mm |
ADJUSTMENT OF CUTTING THICKNESS Digital display with 0.01 mm resolution |
|
SHARPENING SYSTEM Sharpening device with micrometric drive integrated into the machine |
SPLITTING THICKNESS REGULATION Manual Regulation. Control panel with digital thickness display with 0.01 mm resolution. |
|
FEED Manual feed speed selection: 0.9, 1.8, 2.8 m/min |
REGULATION OF THE BLADE Manual Micrometric knife positioning and compensation for knife consumption. |
|
LUBRICATION UNIT Automatic lubrication unit with lubrication tank |
ASPIRATION UNIT (OPTIONAL) Removable aspiration unit. Power 250 W |
|
Construction Characteristics |
|
|
POWER 380 VAC ±10%, 50Hz ±3, 2,7 Kw, three phase - Other on Request |
DIMENSION OF THE BAND-KNIFE 2768 x 40 x 0.6 mm |
|
DIMENSION OF THE MACHINE (Width x Depth x Height) 1200 x 900 x 1100 mm |
WEIGHT 350 kg |
|
Safety Devices |
|
|
SAFETY DEVICES Safety Pushbutton |
LABELLING CE Labelling |
