NBS Abrader - Abrasion Tester

NBS Abrader - Abrasion Tester

Parent Product
Abrasion Testers
Test Application
Rubber Testing
Standards
ASTM D1630

Best Application: Measure the resistance of rubber or other compounds.

Applications

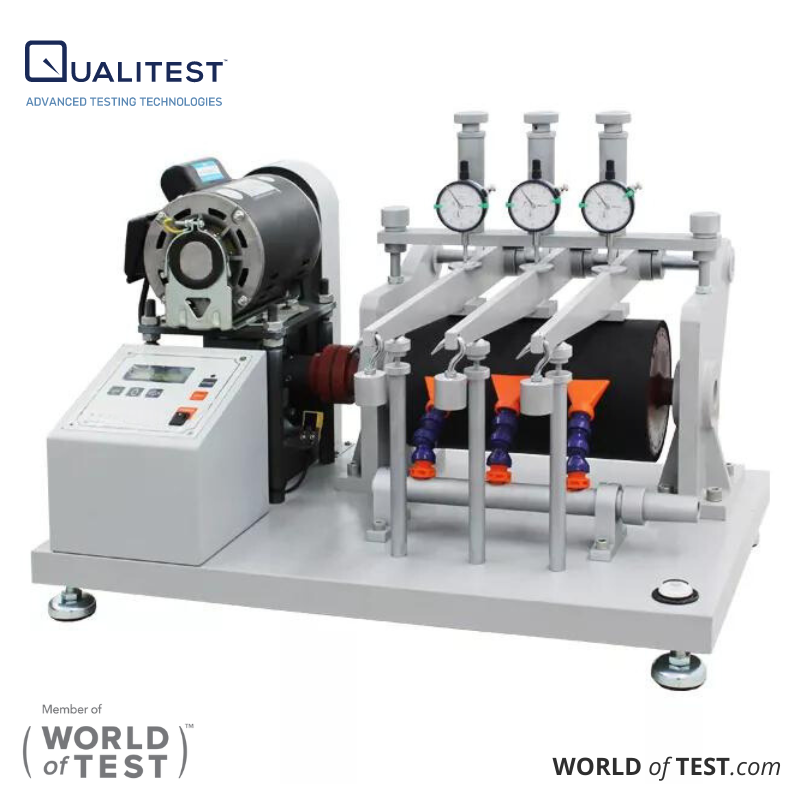

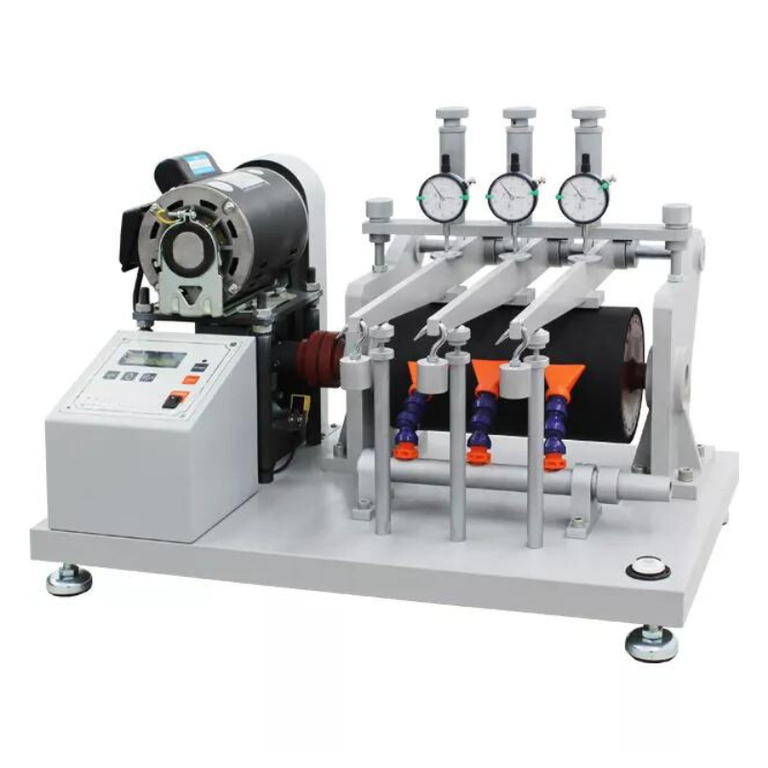

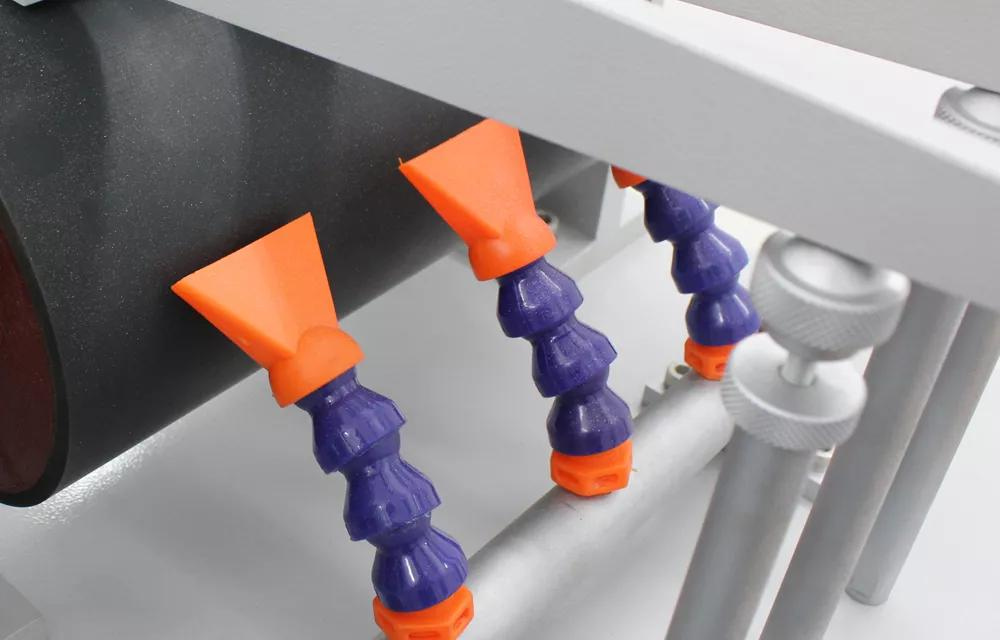

The NBS Rubber Abrasion Tester is designed for determining the resistance of rubber or other compounds, and sole and heel materials not less than 2.54mm to abrasion. This machine has memory function so that users can set the number of tests themselves, and it will keep the current records unchanged even if power failure or stop occurs. lt can be connected to a vacuum cleaner for your convenience of cleaning.

Features/Advantages
  • Inspection of quality products
  • In-process checks to ensure on-spec product for converting operations
  • Quality-control reporting
  • Widely used in the automotive and rubber industry
Theory/Method

ASTM-D1630 Standard Test Method for Rubber Property—Abrasion Resistance (Footwear Abrader). This test method covers the determination of the resistance to abrasion of vulcanized rubber, or other rubber materials that are similar to the standard reference compound, used for the soles and heels of footwear. It is not recommended for materials less than 2.5 mm (0.1 in.) in thickness.

Technical Specifications

Model

QT-7012-N

Load

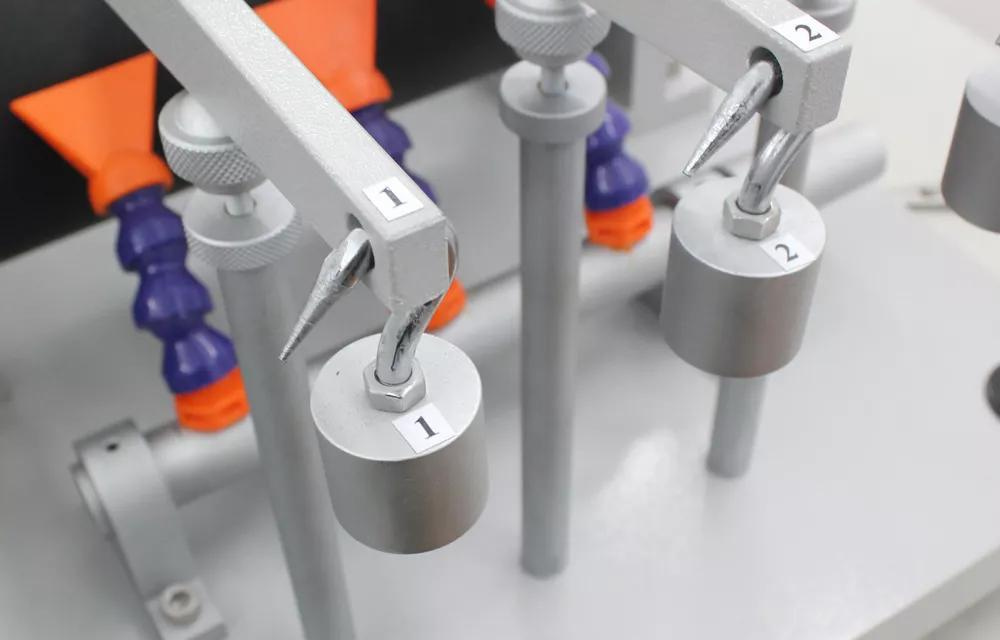

22N

Speed

45±5r/min

Roller

Diameter 150mm

Grinding Cloth

40# grit

Counter

LCD, 0-99,999,999

Dimensions

720 × 490 × 500mm

Weight

80kg
