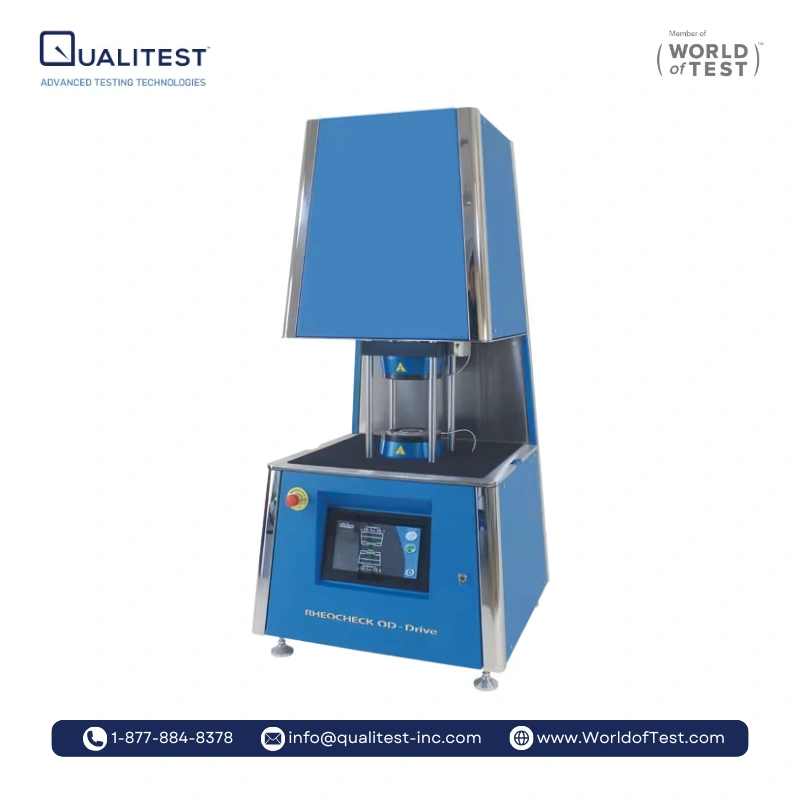

ODR Oscillating Disk Rheometer – Rheocheck OD Drive

ODR Oscillating Disk Rheometer – Rheocheck OD Drive Data Management

Datagest Software: Comprehensive Traceability

The Datagest software serves as the Database Management Tool, a constant companion to all instrument-control programs.

This program empowers you to:

• Choose, filter, print, export, and analyze test results stored across all connected instruments.
• Develop test procedures by defining desired test conditions and expected outcomes.
• Establish tolerance limits for each product, whether manually inputted or derived from statistical analysis (mean and standard deviation) of archived results.
• Generate multi-instrument test reports, providing comprehensive insights across your testing operations.

Standard SQL Database:

All programs employ a database structured with SQL to store results.

The database can be installed within an SQL instance located on the company server, or alternatively, it can be set up on a PC connected to a measuring instrument. The installation of the Microsoft SQL service (Express version) is included in the package.

Industry 4.0 Integration

Both the instrument and the software have been purposefully designed to enhance seamless integration with various environments.

The SQL-formatted database and the Company_Connect program enable you to synchronize your company's management software with the database. This streamlines test identification, accelerates test recognition, and facilitates the utilization of bar-code readers or similar devices. This synergy empowers your operations with improved efficiency and modern connectivity.

Test Report Preparation:

Version 10 programs offer a range of options for creating comprehensive test reports:

• Choose the preferred printing language
• Insert your company's logo
• Print single tests or groups of tests
• Include Test Curves in the report
• Print Numerical Results
• Display Tolerance Limits
• Present Statistical Results
• Add a Legend with result explanations
• Include the Operator's Signature
• Integrate Customized Notes
• Create PDF files of the reports

Incorporated into the program is a REPORT EDITOR, enabling complete report customization and the creation of fully tailored report formats to meet your specific requirements.

ODR Oscillating Disk Rheometer – Rheocheck OD Drive Calibration:

Our calibration adheres to the ISO 6502-2 standard's specifications. Our comprehensive service includes:

• Routine maintenance of the instrument
• Temperature calibration of the dies at 3 distinct temperatures (177°C, 190°C)
• Time-to-temperature recovery calibration at test initiation (180°C, NEW)
• Torque calibration (at 50 dN*m)
• Calibration of the included torque standard
• Thorough examination with the Standard Compound (NEW)
• Issuance and email delivery of the Calibration Certificate, bearing traceability to primary standards.

Our calibration service ensures the accuracy and reliability of your instrument's measurements, providing you with the assurance of precise results.

Safety Features

The instrument is outfitted with the following safety devices:

• Class 1 Safety switch that prevents the dies from closing if the safety panel isn't shut.
• Safety Push-button
• Safety lock on the maintenance access door, ensuring secure operation even under non-standard conditions.
• CE Labeling

These safety components work in harmony to ensure the well-being of users and compliance with safety standards, promoting a secure testing environment.

Die Oscillation Control

The kinematics governing the oscillating motion of the lower test chamber have been meticulously engineered to ensure flawless instrument performance even during demanding and prolonged operations. This is achieved through components such as a Siemens® motor and SKF® bearings, renowned for their reliability and durability.

For precise control, calibrated gauges are included with the instrument, facilitating effortless adjustment of the oscillation angle to either 1.0° or 3.0°. This feature empowers accurate customization in alignment with specific testing requirements.

Test Dies:

The test chamber and rotor adhere to international standards, ensuring compliance and accuracy in testing.

The seal encircling the rotor has been meticulously developed and designed to minimize friction and ensure prolonged durability. This commitment to quality craftsmanship guarantees reliable and consistent test results over time.

Design and Manufacturing:

The ODR Oscillating Disk Rheometer – Rheocheck OD Drive undergoes complete development and manufacturing at our WorldofTest partner, Gibitre’s state-of-the-art facility in Italy, and Europe and it’s supported globally.

All mechanical components are crafted within the company workshop using state-of-the-art CNC machines.

To guarantee optimal measurement reliability, we meticulously select components and sensors from reputable brands, upholding the utmost precision in measurements.

Our team of internally trained professionals oversees every production stage, including assembly, start-up, calibration, packing, shipment, and installation. This holistic approach ensures a product of the highest quality, reliability, and performance.

Accessories

Constant Volume Sample Cutter:

The Constant Volume Sample Cutter is a volumetric die cutter specifically designed for preparing samples with the consistent volume stipulated by the standard. This accessory ensures adherence to testing standards and precise sample preparation.
