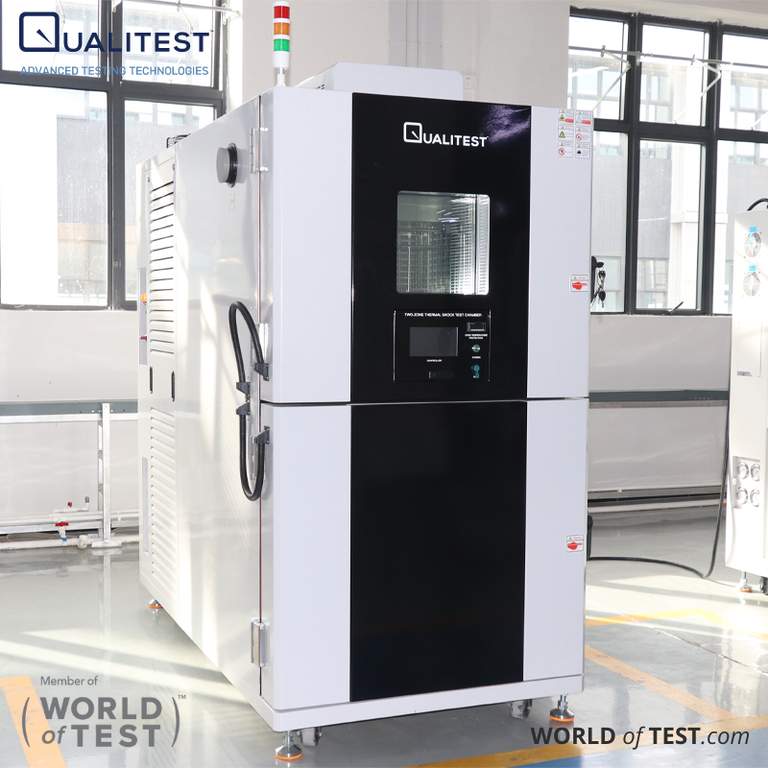

Thermal Shock Chamber

Thermal Shock Chamber

Parent Product
Environmental Chambers
Applications

Qualitest’s Thermal Shock Chamber be used for testing most commercial products to see how they withstand drastic temperature changes. Simply to say, a thermal shock chamber will subject a product to the most extreme temperature conditions, instantly.

The purpose of testing a product under these circumstances by the thermal shock chamber is to observe changes in the products characteristics and check for failure occurrence of different materials and thermal expansion coefficients. These thermal shock chambers are prohibited to flammable explosive easily to volatile substances sample test or storage, corrosive substance sample testing or storage, biological sample test or storage, strong electromagnetic emission source sample test.

Quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

Features/Advantages
  • Thermal shock chamber divided into three zones: High temperature zone, low temperature zone, and testing zone. The test sample is in static mode.
  • Using touch-control graph control as operation interface, easy to operate.
  • Use wind route conversation to shock way to distribute temperature to test zone for cold shock measurement.
  • For high or low temperature shock, max. Time is up to 999H, and max. Circulation cycles are 9999 times.
  • The system can be used for automatic Circulation Shock or manual selective shock.
  • Can entering normal temperature. RS-232 and RS-485 communication.
  • The thermal shock chamber adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
Technical Specifications

Model

QT-TS-A

QT-TS-B

QT-TS-C

QT-TS-D

Volume Size

27L

50L

80L

150L

Interior Dimension (W×H×D)

300×300×300mm

350×400×350mm

400×500×400mm

500×600×500mm

Exterior Dimension (W×H×D)

1200×1810×1100mm

1500×2000×1500mm

1600×2300×2100mm

1700×2400×2200mm

Structure

Two/Three Zones

Two/Three Zones

Two/Three Zones

Two/Three Zones

Maximum Sound Level

55 dBA

60 dBA

65 dBA

65 dBA

Electric Current

35A max

55A max

78A max

120A max

Cooling System

Air Cooling

Water Cooling

Air Cooling

Water Cooling

Temperature Range

-70°~200°C

-70°~200°C

-70°~200°C

-70°~200°C

Temperature Fluctuation

±0.5°C

±1.0°C

±1.0°C

±2.0°C

Humidity Range

40～95%RH

40～95%RH

40～95%RH

40～95%RH

Preheating Temperature Limit

200°C

200°C

200°C

200°C

Heating Rate

0°C~200°C/30 min

0°C~200°C/30 min

0°C~200°C/30 min

0°C~200°C/30 min

Precooling Temperature Limit

-70°C

-70°C

-70°C

-70°C

Cooling Rate

0°C~ -70°C/90 min

0°C~ -70°C/90 min

0°C~ -70°C/90 min

0°C~ -70°C/90 min

Temperature Recovery Time

≤ 10 min

≤ 10 min

≤ 10 min

≤ 10 min

Test Area Bearing

50 kg

50 kg

50 kg

80 kg

Shelf Bearing

20 kg

20 kg

30 kg

30 kg

Setting Range

Temperature: -100°C~200°C

TIME: OHIM~999h

CYCLE: 0 ~9999

Output Mode

PID+SSR

Gross Weight

350 kg

475 kg

650 kg

950 kg
