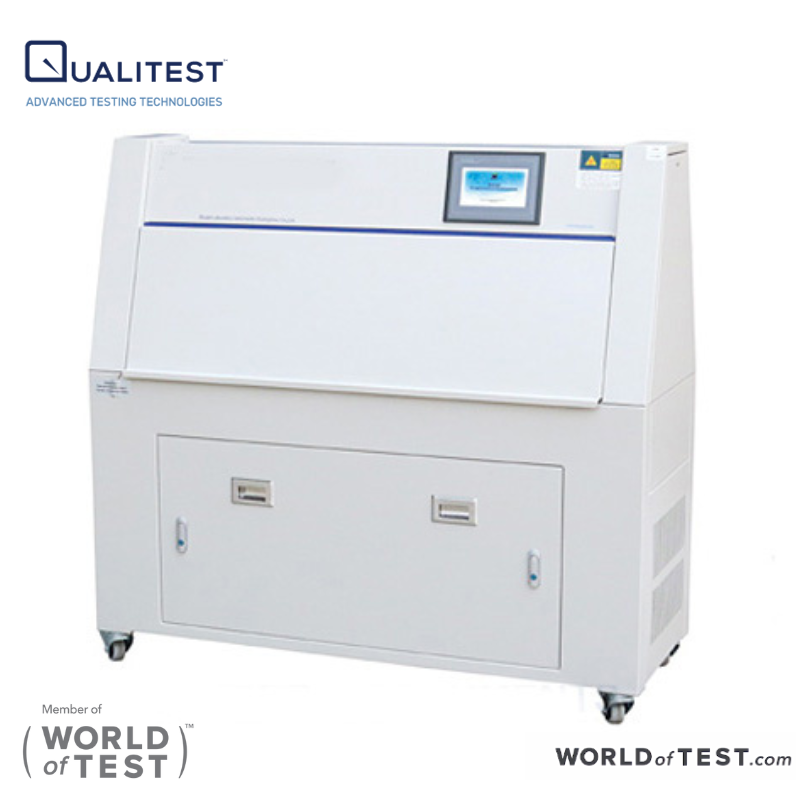

UV Test Chamber

UV Test Chamber

Parent Product
Environmental Chambers
Standards
ASTM G53-84

Best Application: UVA or UVB Testing

UV Test Chambers have been developed to provide a UV weathering. The UV simulates the effect of sunlight with fluorescent ultraviolet (UV) lamps, while rain and dew are simulated by the condensation of humidity.

Applications

UV Lamp aging test chamber is applicable for the sunlight resistant test of non-metallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.



Features/Advantages

Features

  • Made of SUS304 stainless steel. Easy setting operation. Ventilation measurement function.
  • Wing diffusion supply air circulation system, fresh air ventilation can be arbitrary adjustment.
  • Internal rotary free dismantling, Suspension frame motors speed is 8 to 10 rpm. UV Test Chambers

Advantages

  • Large Size
  • Ease of use
Theory/Method

Standards:

  • UV aging chamber ISO 4892-1 Plastic-Methods of exposure to laboratory light sources
  • ASTM G-151 Standard Test Method for non-metallic materials exposed to accelerated test equipment using laboratory light sources
  • ASTM G-154 Test Methods for non-metallic materials exposed to the UV fluorescence device
  • British Standard BS 2781:Part5  Test Mothods 540B (Methods of exposure to laboratory light sources)
  • SAE J2020 Using fluorescent UV / condensation equipment for automotive exposure test
  • JIS D 0205  Burn-in test method of auto parts(Japan)
Technical Specifications

Model

QT-UV600-C

QT-UV800-C

Test Sample Quantity

About 40 pieces with dimension of 150×75mm



Chambers Size (D×W×H)

500×1300×1450mm

550×1500×1500mm

Temperature Range

RT+10℃～70℃

RT+10℃～70℃

Temperature Uniformity

Within ±1C

Within ±1C

Temperature Fluctuation

Within ±0.5C

Within ±0.5C

Humidity Range

≥95%R.H

≥95%R.H

Humidity Uniformity

Within ±2%

Within ±2%

Distance From Sample to Light

50mm

50mm

Ultraviolet Wavelength

290nm～400nmUV-A

290nm～400nmUV-A

Lamp Power

40W

40W

Board Temperature

40℃～65℃

40℃～65℃

Light Heating System

Totally independent systems,

Nickel-chromium alloy electric heater

Humidification System

All stainless-steel shallow surface

Evaporative humidifier

Water Supply System

Supply water automatically



Exposure Mode

Exposure with moisture

Condensation and light radiation

Safety Protection

Leakage, short circuit, over-temperature, water shortages,

Over-current protect/controller power memory protection
