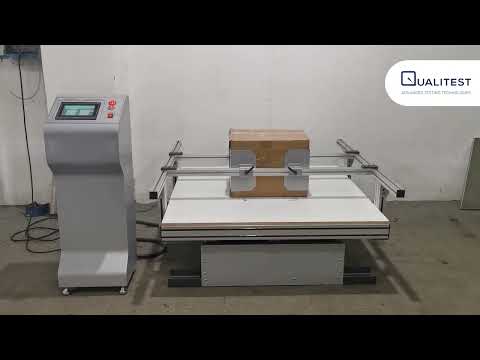

Vibration Testing Machine For Package Box
Test Application
Best Application: Simulates a transportation environment for vibration test on varietal product packaging
Applications
Applications
Transportation Vibration Test Equipment is used to test the anti-vibration capabilities of large pieces of furniture, household appliances, office furniture and other large objects, as well as the simulated transport vibration test of the packaged products, to assess the degree of vibration-resistance
Features/Advantages
Features
- Cost friendly
- Adopts synchronous mute belt drive for low noisy;
- Rail-type specimen holder, easy operation and safety;
- Machine base adopts heavy style channel with vibration attenuation pad, convenient, stable and no need to install land screw;
- AC motor adjusts speed for smooth operation and large load ability;
Familiarity with the following formula is required to calculate the test duration after the frequency required to bounce the packaged product is determined in the vibration test block:
The chart below shows example Test Duration’s calculated for several frequencies.
|
CPM |
Hz |
Test Duration in Minutes |
|
150 |
2.5 |
95 |
|
180 |
3.0 |
79 |
|
210 |
3.5 |
68 |
|
240 |
4.0 |
60 |
|
270 |
4.5 |
53 |
|
300 |
5.0 |
48 |
Technical Specifications
Technical Specifications
|
Model |
QT-7002 |
QT-7002DL |
QT-7002DL-2 |
|
Control method |
- |
PLC control |
PLC control |
|
Max. test load |
100kg |
1000kg |
2000kg |
|
Frequency range |
60~300rpm (adjustable) |
||
|
Amplitude range |
25.4mm (1 inch) |
||
|
Vibration mode |
Rotary motion |
||
|
Work table size |
1000mm*1200mm |
2400x1500mm (L x W) |
1500mm*1500mm |
|
Height of Fence |
- |
1000mm(can be custom-made) |
1500mm |
|
Power supply source |
Single-phase, 110V/220V±10%, 60/50Hz (can be appointed) |
380V |
|
