Profile Projectors - Optical Comparators

Optical comparator is an indispensable tool in the realm of precision measurement and inspection. These specialized instruments have become a trusted ally for manufacturers and quality assurance professionals alike, offering a unique combination of optical magnification and mechanical accuracy to meticulously analyze and verify the dimensions of intricate components and assemblies.

In industries where even the smallest deviation can have significant consequences, such as medical device production, aerospace engineering, or high-performance machinery manufacturing, optical comparators shine. With the ability to measure dimensions with an accuracy of up to 0.0005 inches, these instruments provide the precision necessary to ensure compliance with stringent quality standards and deliver products that meet the highest expectations.

What is an Optical Comparator?

An optical comparator, also known as a profile projector, is a precision measuring instrument widely used in the manufacturing industry for inspection and dimensional analysis. It operates on the principle of optical microscopy, utilizing illumination, lenses, and mirrors to project a magnified silhouette or profile of an object onto a viewing screen, enabling non-contact measurement.

The process of using an optical comparator involves placing the target workpiece on a stage and shining a light from underneath. This causes the object's profile or shadow to be projected onto the screen. Once the magnified silhouette is visible, there are two primary methods for measurement: silhouette measurement and point comparison.

Silhouette measurement involves directly measuring the projected shadow while accounting for magnification distortion. Alternatively, point comparison utilizes a screen with a predetermined image or template. The technician moves the workpiece's shadow to align with each point on the template, measuring the distance the stage travels to achieve the desired overlay.

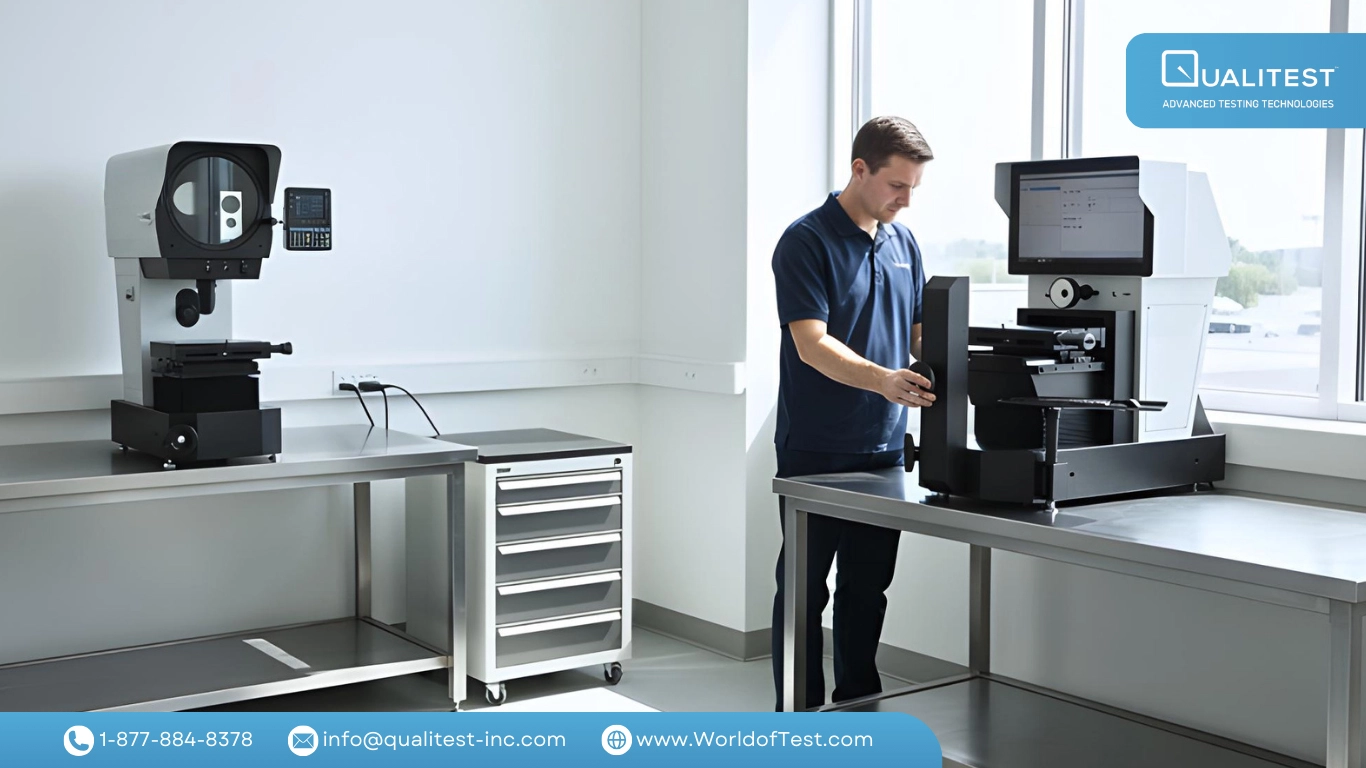

Optical comparators are available in two main configurations: horizontal and vertical.

• Horizontal optical comparator: Position the workpiece and viewing screen horizontally, making them suitable for inspecting fixed or clamped components, such as screws, castings, or objects that require a vise.
• Vertical optical comparator: Have the workpiece and screen arranged vertically, making them ideal for flat or flexible components that can lie on the work stage, such as gaskets or soft materials.

These instruments excel in measuring various geometric features with exceptional accuracy, including dimensions, angles, radii, and surface finishes. Their ability to provide non-contact measurement minimizes the risk of damage to delicate or precision components during inspection. Optical comparators find widespread application in industries where quality control and adherence to strict tolerances are critical, such as automotive, aerospace, medical device manufacturing, and scientific research.

How Does an Optical Comparator Work?

Optical comparator (profile projector) operates on principles that have remained largely unchanged since its invention in the 1920s. Similar to overhead projectors used in classrooms, these instruments employ a sophisticated optical system to project a magnified silhouette or profile of an object onto a viewing screen.

The process of optical comparator or profile projector working principle begins with the workpiece being securely affixed to the comparator's stage. A powerful light source, such as a halogen or LED lamp, illuminates the object from beneath, casting its shadow upwards. This shadow or silhouette is then captured by a series of lenses and mirrors, known as the projector lens assembly.

The projector lens assembly plays a crucial role in magnifying and manipulating the path of light to create an enlarged representation of the workpiece's contours and features. By carefully adjusting the magnification settings, operators can obtain highly detailed and precise images on the viewing screen.

Optical comparators (horizontal optical comparators, vertical optical comparators) can vary in their screen sizes, ranging from 12 to 36 inches, with larger models available for specific applications. Larger screen sizes typically require larger enclosures and increased distances between the stage and screen to minimize distortion and maintain accurate magnification.

Once the magnified silhouette is projected onto the viewing screen, operators can employ various measuring processes to analyze the workpiece's dimensions and characteristics:

• Silhouette Measurement: This straightforward method involves directly measuring the projected silhouette on the screen, utilizing the known magnification factor to obtain accurate dimensional measurements.
• Point Comparison: In this technique, the workpiece's silhouette is overlaid onto a predetermined template or plan points displayed on the screen. The operator then moves the stage to align the silhouette with specific points, measuring the distance the stage travels to achieve alignment.
• Software Analysis (Digital Optical Comparators): Modern digital comparators integrate software capabilities, allowing for real-time analysis and measurement of the projected images through digital processing and computer-aided systems.

Regardless of the measuring process employed, an optical comparator or profile projector is used for measurement of various geometric features, including dimensions, angles, radius, and surface finishes with excel in providing non-contact inspection. Their ability to magnify and project intricate details makes them invaluable tools for quality control, ensuring adherence to strict tolerances, and maintaining product quality across industries where precision is paramount.

How to Use an Optical Comparator?

Using an optical comparator effectively requires a combination of proper setup, careful operation, and adherence to best practices. Follow these step-by-step instructions to ensure accurate and reliable measurements:

1. Prepare the workpiece: Ensure that the component or object you wish to measure is clean and free from any debris or contaminants that could obstruct the view or affect the measurements. Position the workpiece securely on the comparator's stage, using clamps or fixtures as needed to prevent movement during inspection.

2. Adjust the lighting: Proper illumination is crucial for obtaining a clear and well-defined silhouette. Depending on the type of optical comparator, adjust the intensity and angle of the light source to optimize the projected image's contrast and clarity.

3. Calibrate the instrument: Before taking any measurements, calibrate the optical comparator using a certified reference standard or gauge block. This step ensures that the instrument's magnification and measurement scales are accurately calibrated, minimizing potential errors.

4. Select the magnification: Choose the appropriate magnification level based on the size and intricacy of the workpiece's features. Higher magnifications provide greater detail but may limit the field of view, while lower magnifications offer a broader view but sacrifice detail.

5. Align the workpiece: Carefully position and orient the workpiece on the stage, ensuring that the desired features or dimensions are clearly visible and aligned with the measurement axes or reference points on the viewing screen.

6. Focus the image: Adjust the focus of the projector lens assembly to obtain a sharp and well-defined silhouette or profile on the viewing screen. A clear image is essential for accurate measurements and defect detection.

7. Take measurements: Depending on the chosen measurement method (silhouette measurement, point comparison, or software analysis), follow the appropriate procedures to measure the desired dimensions, angles, radii, or other geometric characteristics. Utilize the calibrated scales, overlays, or digital tools provided by the optical comparator to record precise measurements.

8. Inspect for defects: In addition to dimensional measurements, carefully examine the projected silhouette for any surface defects, scratches, indentations, or irregularities. The magnified view provided by the optical comparator allows for detailed inspection and identification of potential quality issues.

9. Record and document: Maintain accurate records of your measurements and observations, including any deviations from specifications or areas of concern. This documentation is crucial for quality control, traceability, and process improvement.

10. Maintain the instrument: Proper maintenance, including regular cleaning, calibration, and adherence to manufacturer guidelines, is essential to ensure the continued accuracy and reliability of your optical comparator.

Remember, using an optical comparator effectively requires practice, attention to detail, and a thorough understanding of the instrument's capabilities and limitations. Seek guidance from experienced operators or consult the manufacturer's manuals for specific instructions and best practices tailored to your application.

Measure Angles and Radius with Optical Comparator (Profile Projector)

Optical comparators are versatile instruments that excel not only in dimensional measurements but also in the analysis of complex features such as angles and radius. These advanced capabilities make optical comparators indispensable tools for a wide range of industries, from manufacturing to quality control.

How to Measure Angles on an Optical Comparator?

Optical comparators offer several methods for precisely measuring angles, catering to different preferences and applications. One common technique involves utilizing the comparator's rotational stage adjustment:

1. Align the workpiece such that the straight edge or line representing the angle you wish to measure is projected onto the viewing screen.
2. Rotate the optical comparator's stage in the θ (theta) direction until the projected straight line aligns with the reference line or axis on the screen.
3. Note the degree of rotation indicated on the comparator's calibrated scale, which corresponds to the measured angle.

Alternatively, many optical comparators are equipped with protractor chart overlays or digital angle calculation functions for more direct angle measurement:

1. Attach or overlay a protractor chart with a fine angular scale onto the viewing screen.
2. Align the protractor's baseline with the projected straight edge of the angle you wish to measure.
3. Read the angle value directly from the protractor overlay's scale, where the projected edge intersects with the angular markings.
4. For digital optical comparators with calculation capabilities, simply specify two projected straight lines, and the software will compute and display the angle between them.

How to Measure Radius Using an Optical Comparator?

Optical comparators (profile projectors) excel in measuring radius, whether internal or external, on various components and geometries. Here's how you can leverage this capability:

1. Position the workpiece on the stage, ensuring the radius you wish to measure is clearly visible and aligned with the measurement axes or reference points.
2. Adjust magnification and focus to obtain a sharp and well-defined silhouette of the radius on the viewing screen.
3. Select the appropriate radius template or overlay from the comparator's collection, matching the approximate curvature of the radius you wish to measure.
4. Overlay the radius template onto the projected silhouette, carefully adjusting its position and orientation until it achieves the best possible fit with the radius contour.
5. Once properly aligned, read the corresponding radius value from the calibrated scale or digital display associated with the radius template.
6. For enhanced accuracy, some advanced optical comparators allow you to freeze the projected image and take multiple radius measurements simultaneously, averaging the results.

Some optical comparators also allow radius/diameter measurement using concentric "chart" overlays or templates applied to the viewing screen. Simply align the projected circle with the appropriate ring on the chart to read the corresponding radius or diameter value.

For digital optical comparators with calculation functions, the process is further streamlined. By marking three points along the circle's edge, the software automatically calculates and displays the diameter and radius values.

Regardless of the method used, it's crucial to ensure proper workpiece alignment, optimal magnification and focus, and precise calibration of the measurement tools or overlays.

Accuracy of Optical Comparators

Optical comparators are renowned for their precision, with an accuracy of approximately 0.0005 inches. Maintaining this high level of accuracy requires understanding the key factors that influence performance.

Factors Affecting Accuracy

• Magnification and resolution: Higher levels enable detecting smaller features.
• Stage movement precision: Accurate positioning and alignment of the workpiece.
• Optical aberrations: Minimizing distortions in the optical components.
• Environmental factors: Controlling temperature, vibrations, and air turbulence.
• Operator skill: Proper training and adherence to procedures.

Calibration and Maintenance

Regular calibration using reference standards ensures the optical comparator is aligned and performing within specified tolerances. Proper maintenance, such as cleaning and lubrication, helps preserve the instrument's measurement capabilities.

Accuracy Specifications and Certifications

Manufacturers provide detailed accuracy specifications. Users must ensure the optical comparator meets industry requirements, especially in regulated sectors like aerospace and medical.

Please note that while optical comparator accuracy is renowned for high accuracy, the exact range can vary depending on factors such as the specific model, configuration, and application. Other factors like calibration, magnification, and the quality of lenses used can also influence the results.

Applications of Optical Comparators

Optical comparator, with their exceptional precision and versatility, find numerous applications across various industries. Let’s explore the diverse range of uses for optical comparators and their invaluable contributions to dimensional analysis, quality control, and product development.

1. Manufacturing and Quality Control

Optical comparators are widely used in manufacturing and quality control processes to ensure dimensional accuracy and adherence to design specifications. They play a crucial role in the inspection of machined parts, molded components, and assembled products. By projecting magnified silhouettes onto a screen, technicians can meticulously compare the part's dimensions and features against pre-defined tolerances and CAD models. This allows for the identification of any deviations, defects, or inconsistencies, enabling corrective actions and improved quality control.

2. Aerospace and Automotive Industries

In the aerospace and automotive industries, where precision and reliability are paramount, optical comparators are indispensable tools for inspecting critical components. They are used to verify the dimensions of engine parts, turbine blades, gears, and other intricate components. The ability to measure complex geometries and identify minute imperfections ensures the safety and performance of aircraft and vehicles.

3. Medical Device Manufacturing

Optical comparators are essential in the medical device manufacturing industry, where accuracy and sterility are crucial. They are used to inspect surgical instruments, implants, and other medical devices, ensuring that they meet the stringent quality standards required for patient safety. The non-contact measurement capabilities of optical comparators minimize the risk of contamination and ensure the integrity of delicate medical components.

4. Electronics and Semiconductor Industry

In the electronics and semiconductor industry, where miniaturization and precision are key, optical comparators are used to inspect printed circuit boards, microchips, and other electronic components. Their ability to measure microscopic features and identify defects is crucial for ensuring the functionality and reliability of electronic devices.

5. Research and Development

Optical comparator is a valuable tool in research and development settings, where they are used to analyze materials, study prototypes, and develop new products. They provide researchers with a non-destructive and high-resolution imaging solution for examining microscopic structures, evaluating material properties, and verifying design specifications.

6. Reverse Engineering

Optical comparators can be used for reverse engineering applications, where they help recreate existing parts without original design information. By projecting the part's silhouette onto the screen, technicians can measure and capture the critical dimensions and contours, enabling the creation of CAD models or manufacturing blueprints for accurate reproduction.

By understanding the diverse applications of optical comparators across various industries, users can appreciate the versatility and importance of these instruments in ensuring product quality, driving innovation, and maintaining manufacturing excellence.

Final Thoughts

Optical comparators are precision instruments that have become indispensable across various industries. By understanding optical comparator or profile projector working principle, accuracy considerations, and diverse applications, users can harness the full potential of these tools to enhance quality control, drive innovation, and maintain manufacturing excellence.

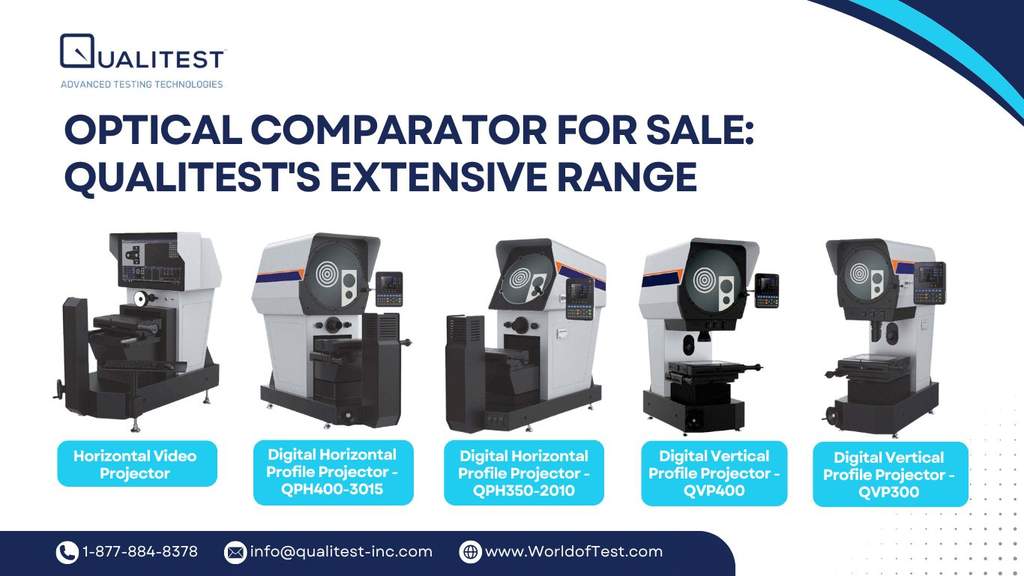

To learn more about our extensive range of optical comparators and how they can optimize your operations, visit our website. Our team of experts is ready to guide you through the selection process and provide tailored solutions to meet your specific needs.

If you're searching for the ideal optical comparator for sale to meet your industrial needs, look no further than Qualitest. We offer an extensive range of optical comparators designed to cater to the diverse requirements of various industries, including mechanical manufacturing, instrumentation, molds, tools, light industry, measurement rooms, workshops related to factories and mines, and even the electronic clock and watch industry.

Our product lineup includes the powerful Horizontal Video Projector, ensuring accurate and efficient inspections with its advanced video projection capabilities. Additionally, we offer the Digital Vertical Optical Comparator - Profile Projector and the Digital Horizontal Optical Comparator - Profile Projector, both delivering precise measurements and detailed profiles for quality control and reverse engineering applications.

To complement our range of optical comparators, we also provide a comprehensive selection of Optical Comparator Accessories, allowing you to customize and enhance your setup for optimal performance and functionality. Let’s explore our product and discover the perfect optical comparator to meet your specific requirements. If you need a comprehensive guide the choose the best Optical comparator, please read our other post here.

1. Horizontal Video Projector

The QPH-3015 Horizontal Video Projector is a powerful and versatile optical comparator designed to meet your precision measurement needs. Featuring a linear guide rail and precision screw drive for smooth operation, a precision toothless rod for minimal error, and an HD zoom lens with a digital camera for clear imaging, the QPH-3015 ensures accurate and distortion-free measurements.

Designed to meet the demands of modern manufacturing, this sophisticated instrument offers a range of features and capabilities to enhance your quality control processes. Here's why it's an ideal choice:

1. Precision and Accuracy: The QPH-3015 comes up with an exceptional precision and accuracy, with a measurement accuracy of ≤3+L/200 (um). This level of precision ensures reliable quality control in your manufacturing operations.
2. Smooth Operation: Featuring a linear guide rail and precision screw drive, the QPH-3015 offers smooth and stable lift operation. This ensures consistent performance, allowing you to rely on accurate measurements every time.
3. Clear Imaging: Equipped with an HD zoom lens and HD color digital camera, this projector provides clear and distortion-free images. This feature is essential for accurate inspection of part features and surface characteristics.
4. Versatility: With programmable surface LED illumination and contour LED parallel illumination, the QPH-3015 offers versatility in inspecting various part types. It adapts to different surface characteristics, ensuring comprehensive quality control.
5. Advanced Software: The iMeasuring software system enhances control quality and facilitates measurement data analysis. Optional upgrades such as contact probes and 3D measuring software further enhance the machine's capabilities and flexibility.
6. Environmental Compatibility: Operating in a stable working environment is crucial for accurate measurements. The QPH-3015 is designed with temperature and humidity controls to minimize environmental influences on measurement accuracy.

The QPH-3015 Horizontal Video Projector offers a comprehensive solution for precision measurement needs across various industries. Whether you're in manufacturing, instrumentation, molds, tools, light industry, or others, this projector ensures reliable quality control and process optimization. Learn more.

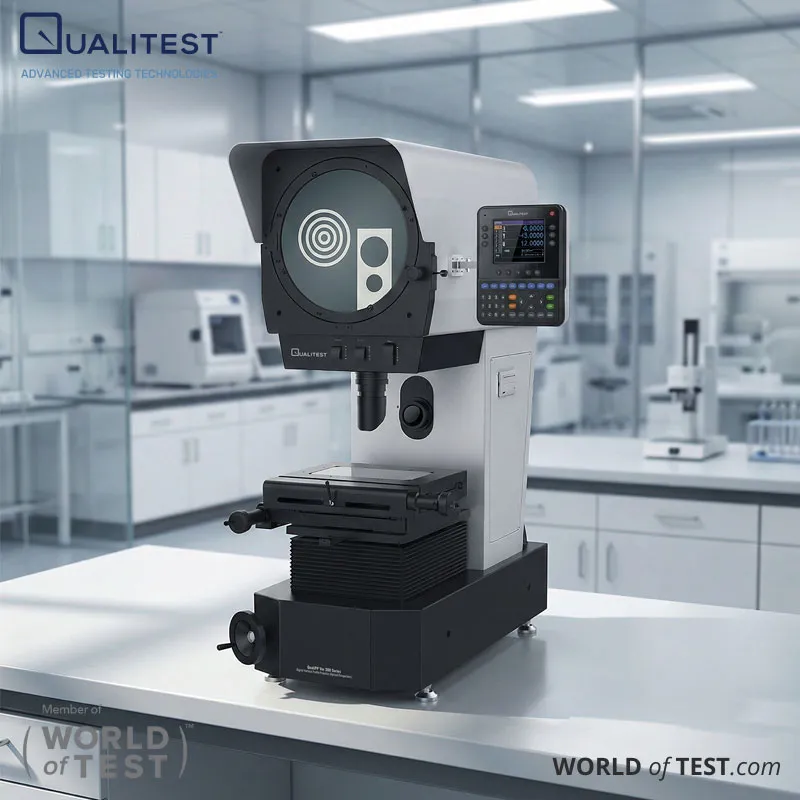

2. Digital Vertical Profile Projector - Optical Comparator

Qualitest's Digital Vertical Profile Projector lineup includes two models: the QVP300 and the QVP400. These powerful measurement tools are utilized for precise measurements or comparisons across various industries, including mechanical manufacturing, instrumentation, molds, tools, light industry, and measurement facilities within factories and mines.

Both the QVP300 and QVP400 are capable of detecting the contours and surface shapes of diverse complex workpieces, such as patterns, stamped parts, cams, threads, gears, forming files, thread taps, and various cutting tools, implements, and components.

Here is a comparison table for the QVP400 and QVP300 digital vertical profile projectors:

Based on the comparison table, this is our recommendation:

1. Size and Travel: If you require a larger stage size and more extensive stage travel, the QVP400 series may be more suitable, especially if you need to work with larger parts.
2. Weight and Dimensions: Consider the weight and dimensions of the product, particularly if you have space constraints in your workspace. The QVP400 series tends to be heavier and slightly larger than the QVP300 series.
3. Magnification and Field of View: Assess your measurement needs in terms of magnification and field of view. The QVP400 series offers a wider range of magnifications and larger field of views compared to the QVP300 series, which might be beneficial for inspecting different types of parts.
4. Focusing Distance: The QVP400 series has a longer focusing distance compared to the QVP300 series. If you need more flexibility in focusing, this might influence your decision.
5. Price Consideration: Consider your budget constraints. While the QVP400 series offers more features and capabilities, it may come with a higher price tag compared to the QVP300 series.

Ultimately, the right choice depends on your specific requirements, including the size of parts you need to measure, the level of precision needed, and your budget.

If you prioritize versatility and have a larger budget, the Digital Vertical Optical Comparator QVP400 series might be the better option. However, if you're looking for a more compact and cost-effective solution for smaller parts, the Digital Vertical Optical Comparator QVP300 series could be more suitable.

It's essential to carefully evaluate your needs and consider how each product aligns with your measurement and inspection requirements. If you're still uncertain, consulting with our QualiSales team or an expert in metrology equipment can provide additional guidance tailored to your specific situation.

3. Digital Horizontal Profile Projector - Optical Comparator

Qualitest's Digital Horizontal Profile Projector is another top-of-the-line measurement tool designed for precise measurement or comparison tasks. The range includes the QPH350-2010 and the QPH400-3015 models.

Some of the key features of the Digital Horizontal Profile Projector include a lifting system with a cross roller rail and precision screw drive for smooth and stable lifting, a reflector coating process for clearer images and excellent dustproofing, adjustable contour and surface illumination, imported LED illumination for high brightness and extended lifespan, and a high-resolution optical system delivering clear images with a magnification error of less than 0.08%.

Here is a comparison of specifications between the QPH400-3015 and QPH350-2010 digital horizontal profile projectors:

Based on these specifications, these are our recommendations:

1. Working Stage Size and Travel: QPH400-3015 offers a larger working stage size and travel compared to QPH350-2010, which might be beneficial for measuring larger parts or providing more space for maneuvering during inspection.
2. Focusing: QPH400-3015 has a longer focusing distance of 120mm compared to 90mm in QPH350-2010. This might be advantageous for accommodating taller parts or providing more flexibility in focusing.
3. Accuracy: QPH400-3015 offers slightly higher accuracy (≤3+L/200) compared to QPH350-2010 (≤4+L/200).
4. Screen Diameter: QPH400-3015 features a larger screen diameter (φ412mm) compared to QPH350-2010 (φ380mm), potentially providing a larger field of view for inspection.
5. Objective Lens Magnification and Field of View: QPH400-3015 offers a wider range of magnifications and a larger field of view compared to QPH350-2010, which might offer more versatility in inspecting different types of parts.
6. Weight and Dimensions: QPH400-3015 is heavier and larger in dimensions compared to QPH350-2010, which might be a consideration for workspace constraints.

Considering these differences, the choice between the two models depends on your specific measurement needs, including the size of parts to be measured, the required accuracy, and the available workspace.

If you need a larger stage size, longer focusing distance, and higher accuracy, QPH400-3015 might be the preferable option. However, if space constraints are a concern, and the smaller stage size and shorter focusing distance are sufficient for your needs, QPH350-2010 could be a suitable choice.

4. Optical Comparator Accessories by Qualitest

To further enhance the capabilities of optical comparators, Qualitest offers a range of accessories to support your specific needs. These are some accessories that you can choose from.

1. Color Screen Multifunction Digital Readout: Provides advanced digital measurement and display functionalities, offering precise and easy-to-read readouts.
2. Edge Finder: Helps locate the precise edge of a part or feature, enabling accurate positioning and measurement.
3. Optical Comparator Overlay: Transparent templates or sheets that contain geometric shapes, angles, or patterns, providing a visual reference for comparing parts and aiding in the measurement and inspection process of optical comparators.
4. Transmitted Lens: Allows for the projection of transmitted light through the part, revealing internal structures and details.
5. Edge Detector: Automatically detects and identifies part edges, streamlining the measurement process and improving efficiency.
6. Foot Switch: Offers hands-free control of the optical comparator, allowing the user to focus on the measurement task.
7. Objective: Interchangeable objectives with different magnification levels, providing flexibility in selecting the optimal viewing and measurement capabilities.
8. Screen Fixture: Securely holds the projection screen in place, ensuring a stable and consistent display of the magnified image.

These accessories can be selectively integrated with the optical comparator to tailor the instrument to your specific measurement needs. By carefully selecting the appropriate accessories, you can streamline your measurement processes, improve efficiency, and unlock the full potential of your optical comparator.

Final Thoughts

Qualitest's extensive range of optical comparators provides you with options tailored to your specific measurement needs. Whether you require a horizontal video projector for precision measurements, a digital vertical profile projector for versatile applications, a digital horizontal profile projector for accurate detection of complex workpiece shapes, or additional accessories, Qualitest has you covered.

Our commitment to delivering cutting-edge technology, combined with exceptional customer support, makes Qualitest the ideal supplier for your optical comparator requirements. To explore our comprehensive range of Optical Comparators, please visit here. If you have any questions or need further assistance, please don't hesitate to contact us.
