The rheometer is your answer to mastering material behavior, from the effortless glide of premium paint to the strength of industrial plastics. When materials don’t behave as expected, rheology offers the key to solving these challenges.
Let’s explore how these instruments can transform material testing and quality control.

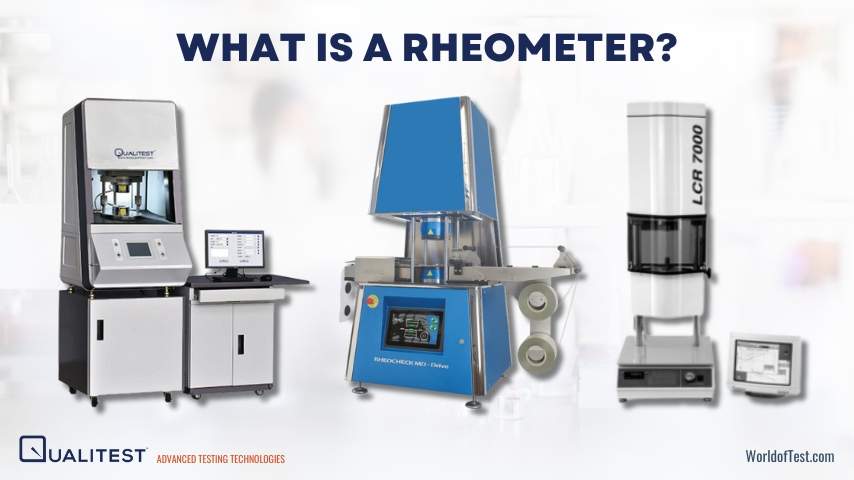

What Is a Rheometer?
A rheometer is a precision instrument designed to measure the flow and deformation of materials, providing detailed insights into their rheology. It operates by containing the material in a specific geometric configuration, controlling the surrounding environment, and applying a wide range of stress, strain, and strain rates.
Unlike simple viscosity measurements, rheometers analyze complex properties like elasticity and viscoelasticity. Widely used across industries, rheometers are indispensable for testing paints, polymers, food textures, pharmaceutical formulations, and adhesives.
Modern configurations, including rotational rheometers, dynamic shear rheometers (DSR), and capillary rheometers, cater to diverse applications. These innovations enhance performance in high-pressure, interfacial, and extensional measurements, making rheometers more versatile for complex material analysis (Hou, Y. Y., & Kassim, H. O, 2005).

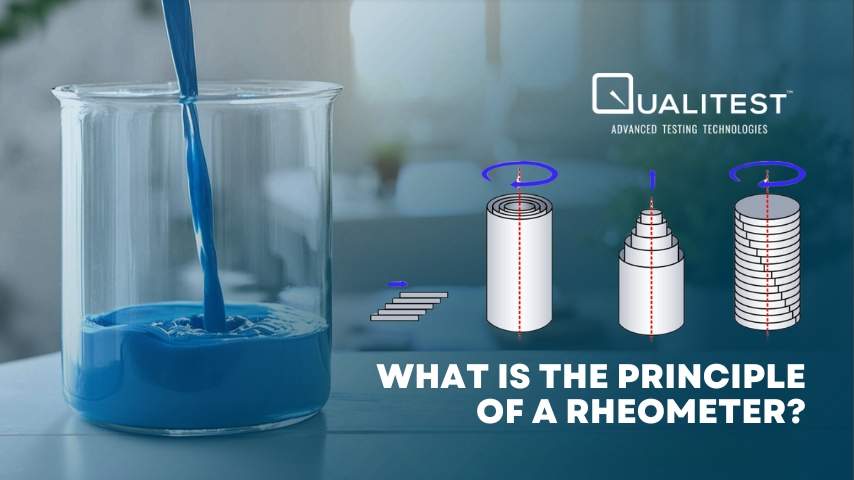

What Is the Principle of a Rheometer?
The principle of a rheometer is to analyze a material’s response to applied forces, providing detailed measurements of its flow and deformation properties. This is achieved by examining angular displacement, torque, and angular viscosity, which are then transformed into critical parameters like velocity, stress, modulus, strain, and strain rate.
These measurements are precisely monitored using advanced components, such as an optical decoder, ensuring accurate and repeatable results (Tadros, 2011).
A rheometer operates by containing the material in a defined geometric configuration, such as parallel plates, cone-and-plate setups, or concentric cylinders, and applying controlled mechanical forces. For instance:
- Rotational rheometer: Evaluates torque and angular displacement to measure shear stress and strain rate, making it ideal for studying fluid properties.
- Dynamic shear rheometer (DSR): Applies oscillatory forces to analyze viscoelastic behavior, commonly used in asphalt and polymer testing.
- Capillary rheometer: Pushes materials through a narrow capillary to assess their flow under high stress, often used for molten plastics and other viscous substances.
By leveraging these principles, rheometers enable researchers and manufacturers to replicate real-world conditions and gain invaluable insights into material behavior, supporting advancements in product design, quality control, and process optimization.

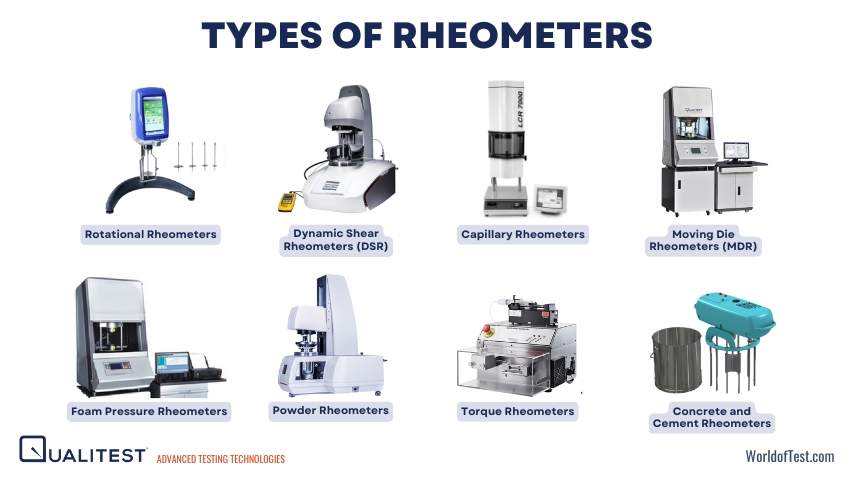

Types of Rheometers
Rheometers come in various types, each designed to meet specific testing needs. These instruments differ based on their working principles, applications, and the properties they measure.
1. Rotational Rheometers
Rotational rheometers measure how materials respond to steady shear forces, making them perfect for analyzing non-Newtonian fluids like paints, coatings, and cosmetics. They help ensure products flow smoothly and consistently during application, giving manufacturers the insights needed to optimize formulations.
2. Dynamic Shear Rheometers (DSR)
Dynamic shear rheometers focus on viscoelastic properties by applying oscillatory forces. Whether you’re testing asphalt for durability or polymers for elasticity, DSR rheometers ensure materials perform under dynamic conditions, making them a go-to tool for critical quality control.
3. Capillary Rheometers
Capillary rheometers are essential for high-viscosity materials like polymer melts. By forcing materials through narrow capillaries under pressure, they provide precise data to optimize production processes and ensure reliable melt flow behavior.
4. Moving Die Rheometers (MDR)
Moving die rheometers are specifically designed for rubber and elastomer testing. They measure curing characteristics, providing precise data on vulcanization behavior and dynamic properties, ensuring the reliability and durability of rubber products used in automotive and industrial applications.
5. Foam Pressure Rheometers
Foam pressure rheometers are specialized tools for studying the flow behavior and stability of foams under controlled pressure conditions. They are commonly used in industries like packaging, food, and personal care to evaluate foam structure and ensure consistent performance.
6. Powder Rheometers
Powder rheometers analyze how powders flow, pack, and compress, making them indispensable in industries like pharmaceuticals and food processing. They simulate real-world conditions to ensure powders handle consistently during storage and production.
7. Torque Rheometers
Torque rheometers measure the force needed to deform materials, offering insights into processing behavior. They’re ideal for polymers and other complex materials, helping you assess how compositions affect performance during manufacturing.
8. Concrete and Cement Rheometers
Concrete rheometers, such as the Sliding Pipe Rheometer (SLIPER) and Viskomat Rheometer, measure yield stress and viscosity to analyze fresh concrete flow. These tools ensure consistent workability and structural integrity, optimizing mix designs for reliable construction projects.
What Is the Application of a Rheometer?
Rheometers are versatile instruments used across industries to analyze the flow and deformation behavior of materials. By providing detailed insights into material properties, they ensure consistency, optimize processes, and support innovation.
1. Polymers and Plastics
Rheometers are essential in polymer manufacturing, evaluating melt flow behavior and viscoelastic properties. They help ensure the strength, flexibility, and durability of plastic products, guiding the development of high-performance materials for industries like automotive and packaging.
2. Paints and Coatings
These tools analyze viscosity and shear-thinning behavior, ensuring smooth application and uniform coverage. They also help evaluate the stability of coatings to prevent sagging or dripping, making them indispensable for quality control.
3. Pharmaceuticals
In the pharmaceutical industry, rheometers assess formulations to ensure proper flow during manufacturing and stability over time. They are particularly useful for studying creams, gels, and liquid medicines, ensuring ease of application and consistent dosing.
4. Food and Beverages
From testing the creaminess of yogurt to the pourability of sauces, rhelp maintain the texture and consistency of food products, supporting innovation and ensuring customer satisfaction (Marsh, 2024). By analyzing shear properties, they support innovation in product development while ensuring customer satisfaction.
5. Cosmetics and Personal Care
Rheometers measure spreadability, viscosity, and stability, ensuring products like lotions, shampoos, and creams deliver a smooth application and maintain shelf stability under different environmental conditions.
6. Adhesives and Sealants
In adhesive testing, these instruments evaluate bonding strength, curing time, and flow behavior under stress. This ensures reliable performance in applications ranging from construction to electronics.
7. Asphalt and Construction Materials
Rheometers are vital in asphalt and construction material testing, ensuring durability and performance under real-world conditions. Tools like the Dynamic Shear Rheometer (DSR) analyze the viscoelastic properties of asphalt to withstand stress and temperature changes.
The Sliding Pipe Rheometer (SLIPER) evaluates the flow behavior of fresh concrete during pumping, while the Viskomat Rheometer measures yield stress and viscosity in cement-based materials. These instruments help optimize formulations, ensuring reliable and long-lasting infrastructure.
What Is the Difference Between a Rheometer and a Viscometer?
A rheometer and a viscometer are both instruments used to measure material flow properties, but they differ significantly in their capabilities and applications. A viscometer primarily measures the viscosity of fluids under a single flow condition, which is sufficient for Newtonian fluids with constant viscosity.
However, many materials, like paints, polymers, or food products, are non-Newtonian, meaning their viscosity changes with shear rate. In such cases, a single viscosity value is insufficient, and a rheometer becomes essential.
Rheometers measure a material’s rheology, capturing its response to various stresses, strains, and strain rates over a wide range of conditions. They are particularly useful for analyzing yield stress, viscoelasticity, and behaviors like sagging, sedimentation, or leveling, which viscometers cannot accurately assess.
Rheometers can operate across a broader measurement range (10⁻⁶ to 10⁵ s⁻¹), making them ideal for processes such as spraying, sedimentation, or high-shear applications. They also come in specialized types, including rotational, capillary, and extensional rheometers, each suited to specific testing needs.
On the other hand, viscometers are simpler and more suited for routine quality control of Newtonian and mildly non-Newtonian fluids, operating effectively within a narrower shear rate range (0.1 to 10³ s⁻¹). While they are valuable for processes like mixing, pumping, and extrusion, they cannot provide the detailed material characterization that rheometers offer.
Comparison Table: Rheometer vs. Viscometer
Property/Process | Viscometer | Rheometer |
Primary Measurement | Viscosity | Rheology (viscosity, yield stress, viscoelasticity) |
Shear Rate Range (s⁻¹) | 0.1 to 10³ | 10⁻⁶ to 10⁵ |
Material Behavior | Newtonian fluids, simple systems | Non-Newtonian fluids, complex systems |
Processes Supported | Mixing, pumping, brushing | Spraying, sedimentation, sagging, leveling |
Measurement Methods | Single flow condition | Variable stress, strain, and strain rate |
Advanced Testing | Not supported | Yield stress, viscoelasticity, time-dependent behaviors |
Instrument Types | Rotational viscometers, capillary viscometers | Rotational, capillary, extensional rheometers |
Applications | Quality control | Research, detailed material characterization |
A rheometer’s ability to analyze a material’s full rheological profile makes it an indispensable tool for advanced material testing, while viscometers are more suited for quick, routine measurements.
What Are the Advantages and Disadvantages of a Rheometer?
Rheometers are invaluable tools for understanding the complex behavior of materials, but like any instrument, they come with their own set of benefits and limitations. Here's a closer look:
Advantages of Using a Rheometer
- Comprehensive Material Analysis: Rheometers measure a wide range of properties, including viscosity, yield stress, elasticity, and viscoelasticity, providing a complete understanding of a material’s behavior.
- Broad Testing Range: These instruments operate across a vast shear rate spectrum (10⁻⁶ to 10⁵ s⁻¹), making them suitable for analyzing low-shear processes like sedimentation and high-shear applications like spraying.
- Customization for Specific Applications: Rheometers come in various configurations, such as rotational, capillary, and extensional models, tailored to different materials and industries.
- Dynamic Testing Capabilities: They can simulate real-world conditions, like oscillatory stress or strain, to evaluate materials under dynamic forces.
- Enhanced R&D and Quality Control: Rheometers provide precise data critical for optimizing formulations, improving processes, and ensuring consistent product quality.
Disadvantages of Using a Rheometer
- Higher Cost: Rheometers are more expensive than viscometers due to their advanced features and broader capabilities.
- Complex Operation: These instruments require trained operators to perform tests and interpret results accurately.
- Time-Consuming: Rheological testing can take longer than simple viscosity measurements, particularly for in-depth material analysis.
- Maintenance Requirements: Advanced components like torque transducers and optical decoders demand regular calibration and upkeep to ensure accuracy.
Final Thoughts
Rheometers are important for industries that demand precision in understanding material behavior under various conditions. From analyzing viscoelastic properties of polymers to evaluating the flow of complex fluids, rheometers provide comprehensive insights beyond simple viscosity measurements.
For advanced research, product development, or quality control, investing in high-quality rheology testing equipment is essential. Our extensive range of rheometers, from rotational and capillary models to dynamic shear systems, is designed to meet diverse testing needs with precision and reliability.
Explore our solutions to achieve exceptional results in material performance and innovation.
References:
- Tadros, T. F. (2011). Rheology of dispersions: Principles and applications. Wiley-VCH.
- Marsh, S., Rummel, F. (2024). Rheometry and Rheological Characterisation. In: Rosenthal, A., Chen, J. (eds) Food Texturology: Measurement and Perception of Food Textural Properties.
- Hou, Y. Y., & Kassim, H. O. (2005). Instrument techniques for rheometry. Review of Scientific Instruments, 76(10).
Measuring viscosity in the paint and coatings industry can be challenging. Inaccurate viscosity measurements can lead to inconsistent product quality and performance issues. Accurate viscosity measurement is important for smooth application and customer satisfaction.
You may be confused about choosing between a rotational viscometer and a rheometer. This article compares both instruments to help you solve industry pain points and improve your production process.
The Importance of Viscosity and the Types of Instruments to Measure It
Viscosity measures a fluid's resistance to flow. In the paint and coatings industry, viscosity affects product application, consistency, and customer satisfaction. Proper viscosity ensures smooth application and optimal performance.
Inconsistent viscosity can lead to defects, uneven coating, and poor adhesion. These issues impact product quality and can result in customer complaints. Accurate viscosity measurement is necessary to maintain product standards and achieve the desired performance.
There are two familiar instruments for measuring viscosity: rotational viscometers and rheometers.
What Is a Rotational Viscometer?
A rotational viscometer measures viscosity by rotating a spindle in the fluid. The resistance to the spindle's movement indicates the fluid's viscosity. This instrument is commonly used in the paint and coatings industry due to its accuracy and ease of use.
This tool are ideal for quality control (QC). They are simple to use and relatively inexpensive to purchase, maintain, and operate. These devices provide a viscosity result under a single set of defined conditions, offering insight into a small window of rheological properties.
Various types, such as coaxial cylinder, cone-and-plate, and spindle viscometers, are available to suit different viscosity ranges and applications.
What Is a Rheometer?
A rheometer provides much more insight into your product's properties than a viscometer. It is a versatile instrument used for research and development (R&D) and problem-solving. Rheometers can perform an array of rotational, oscillational, and vertical geometry movements with small sample volumes (typically 100 µL to 1 mL per assay).
Rheometers probe a broad range of rheological responses to applied forces and conditions, such as stress, strain, shear, temperature, amplitude, frequency, friction, vertical compression, pull-away, and surface tension.
In the paint and coatings industry, rheometers help study thixotropy, shear thinning, and other complex flow behaviors. This information is crucial for formulating products that perform well during application and in end-use conditions.
What Is the Difference Between a Rotational Viscometer and a Rheometer?
Understanding the differences between rotational viscometers and rheometers is essential for choosing the right instrument for your needs. Let's compare their measurement capabilities, accuracy, ease of use, cost, and industry applications.
1. Measurement Capabilities
Measure viscosity under a single set of defined conditions. They are ideal for providing quick and reliable viscosity readings, making them perfect for quality control. However, their scope is limited to a narrow window of rheological properties.
In contrast, rheometers offer a broader range of measurements. They can perform rotational, oscillational, and vertical geometry movements. Rheometers measure various rheological responses, such as stress, strain, shear, and more. This makes them suitable for research and development, providing deeper insights into a product's properties.
2. Accuracy and Precision
Accurate for standard viscosity measurements. They offer repeatable results under controlled conditions, ensuring consistent product quality.
Rheometers, however, provide higher precision and versatility. They can measure complex flow behaviors and respond to different stress and strain conditions. This precision is vital for developing new formulations and solving complex problems in the paint and coatings industry.
3. Ease of Use and Maintenance
Straightforward to use, they require minimal training and are easy to maintain. Their simplicity makes them ideal for routine quality control checks.
Rheometers, while more complex, offer advanced features for in-depth analysis. They require more training to operate but provide extensive data for research purposes. Maintenance is also more involved due to their sophisticated components.
4. Cost and Investment
Relatively inexpensive, they are cost-effective for purchase, maintenance, and operation, making them accessible for many businesses.
Rheometers are a significant investment. Their advanced capabilities come at a higher cost, but they offer substantial returns in research and development. For companies focused on innovation, this investment can lead to significant breakthroughs.
5. Industry Applications
Commonly used in quality control within the paint and coatings industry. They ensure consistent viscosity, leading to uniform product performance.
Rheometers are used for R&D and complex problem-solving. They help in understanding and developing products with specific flow properties. This makes them invaluable for creating innovative paint and coating solutions that meet advanced application requirements.
To see the summary, please check the table below:
Factors to Consider When Choosing a Rheometer or Viscometer
Selecting between a rotational viscometer and a rheometer depends on your specific requirements. Here are some factors to consider to help you make an informed decision.
1. Product Type and Viscosity Range
Consider the type of products you are working with and their viscosity range. Rotational viscometers are ideal for products with a consistent viscosity that need regular quality checks. Rheometers, on the other hand, are suitable for products with varying viscosity and complex flow behaviors.
2. Measurement Requirements
Determine your measurement needs. If you require simple, routine viscosity measurements, a rotational viscometer is the best choice. For more detailed analysis of rheological properties, such as shear thinning or thixotropy, a rheometer is necessary.
3. Temperature Control
Temperature significantly affects viscosity measurements. This viscometers often come with basic temperature control features, suitable for routine checks. Rheometers offer advanced temperature control options, allowing for precise adjustments to study how temperature variations impact product behavior.
4. Budget and Resources
Evaluate your budget and available resources. Rotational viscometers are cost-effective and require minimal training, making them accessible for many businesses. Rheometers, while more expensive, offer extensive capabilities for research and development. If your budget allows and you need in-depth analysis, investing in a rheometer can be beneficial.
5. Application Needs
Assess the specific applications and problems you need to address. If your primary goal is to maintain consistent product quality, a rotational viscometer will meet your needs. For advanced research, formulation development, and solving complex flow issues, a rheometer is the better choice.
Choosing between a rotational viscometer and a rheometer depends on your specific needs. Rotational viscometers are ideal for quality control due to their ease of use and cost-effectiveness. Rheometers, with their advanced capabilities, are suited for research and development, providing deeper insights into complex product behaviors.
Consider factors such as product type, measurement requirements, budget, temperature control, and ease of maintenance when making your decision.
